How to Increase U.S. Battery Production Ramp-Up Speed by 30%? The Role of Multi-Station Laser Welding Systems
The past two years have witnessed a historic surge in U.S. battery manufacturing, driven by the Inflation Reduction Act and the push for energy independence. However, as we move through 2026, the landscape has shifted. With the expiration of federal EV tax credits cooling market demand, the industry is transitioning from a construction boom to a production ramp-up and capacity consolidation phase. For investors and plant managers, a sobering reality has set in: bringing a line from completion to full production speed with acceptable yield is proving to be a far greater challenge than building it.
Industry data consistently shows that new battery lines experience ramp-up delays significantly longer than initially projected, with some facilities even facing temporary shutdowns due to order shortfalls. In the lines that are running, welding processes are repeatedly confirmed as a primary bottleneck. When a single battery module requires hundreds of micro-welds—each a potential point of failure—inconsistencies in welding speed or quality can bring an entire production line to a standstill.
At the same time, the U.S. battery landscape is undergoing a fundamental transformation. Driven by surging demand from AI data centers, over a dozen North American battery plants are currently being retooled to produce energy storage systems (ESS). This means that for both EV and ESS battery manufacturers, improving welding efficiency and consistency has become the critical capability for competing in a rapidly evolving market.
Chapter 1: The Ramp-Up Reality—Why Speed and Consistency Are at Odds
1.1 The Math of Mass Production

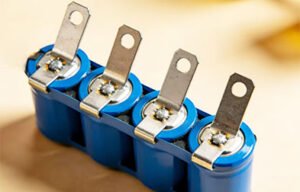

Consider a typical EV battery module. Depending on cell format—cylindrical, prismatic, or pouch—a single module may contain hundreds of individual cells, each requiring one or more welds to connect to busbars or current collectors. At production rates targeting 30+ parts per minute, welding systems must execute thousands of precise, repeatable joints without interruption.
The challenge is compounded by the fact that these welds occur late in the manufacturing process—after significant value has already been built into the battery. A single defective weld at this stage can mean scrapping an entire high-cost module.
1.2 The Sources of Inconsistency
Observations from operating lines reveal several recurring sources of speed and quality variation:
| Inconsistency Factor | Impact on Ramp-Up | Typical Mitigation Challenge |
|---|---|---|
| Cell position variation | Misalignment requires vision adjustment, slowing cycle time | Clamping systems must adapt to ±0.5mm positional tolerances |
| Material reflectivity (Cu/Al) | Inconsistent energy absorption affects weld penetration | Requires real-time parameter adjustment |
| Thermal buildup | Consecutive welds without cooling degrade quality | Multi-station designs distribute thermal load |
Note: The above impacts are based on industry observations; actual results may vary depending on specific cell designs and production configurations.
Chapter 2: The Multi-Station Advantage—Distributing Work, Maintaining Flow
2.1 Beyond Single-Point Bottlenecks
Traditional single-station laser welding cells, while effective for low-volume production, often become choke points as line speeds increase. Each weld must be completed sequentially, and any variation—whether from material fit-up or contamination—introduces delay that propagates through the entire line.
Multi-station systems address this by parallelizing the welding process. Rather than processing welds one after another at a single head, multiple welding stations operate simultaneously on the same module or on different modules in a rotating sequence.
2.2 Quantifying the Throughput Gain
In a well-designed multi-station configuration, cycle time improvements of 20-30% are achievable compared to single-station alternatives, based on analysis of typical production scenarios. This gain comes from:
Overlapping operations: While one station welds, another indexes into position
Distributed thermal load: Each station operates at a lower duty cycle, reducing cooling wait times
Parallel inspection: Vision systems can inspect completed welds while adjacent stations continue processing
Actual improvement depends on module design, weld count, and material handling integration. A process feasibility study is recommended for specific applications.
Chapter 3: Engineering Consistency—From Process Control to Real-Time Monitoring
3.1 The Clamping Imperative
For laser welding to achieve consistent results, the gap between components must be minimized—ideally zero. In high-volume production, however, cell and busbar positions inevitably vary due to upstream tolerances. In prismatic cell cap welding, gap variation and thermal distortion are common factors affecting yield.
Advanced multi-station systems address this through dynamic clamping approaches:
Robotic clamping tools that adapt to local position variations
Vision-guided adjustment that measures each weld location before processing
Programmable pressure control to accommodate different material stacks
3.2 Real-Time Weld Monitoring
The transition from statistical quality control to direct measurement is perhaps the most significant advancement in battery welding. Traditional laser weld monitoring systems infer quality from proxy signals—plasma emission, acoustic feedback, or thermal imaging. These methods, while useful, do not directly measure the parameter of greatest interest: penetration depth.
Modern inline coherent imaging systems use a low-power measurement beam coaxial with the welding beam to directly measure keyhole depth with micron-level accuracy. This enables:
100% inspection of every weld, in real time
Immediate flagging of under- or over-penetration
Rework decisions made before additional value is added
Note: While direct measurement technologies significantly improve quality assurance, they should be validated for each specific application. Results may vary based on materials and joint configurations.
3.3 Data for Traceability and Continuous Improvement
For U.S. manufacturers, weld data is increasingly a required deliverable. Multi-station systems with integrated monitoring can log, for every weld:
Key parameters: power, pulse width, speed
Measured penetration depth
Pass/fail status
Timestamp and station ID
Associated module serial number
This creates a digital thread linking each connection back to its production conditions, enabling statistical process control and providing auditable proof of manufacturing quality.
Chapter 4: Integration and Validation—De-Risking Your Ramp-Up
4.1 The Systems Approach
A laser welding station is not an island. To achieve consistent 20-30% line speed improvements, the welding cell must integrate seamlessly with upstream and downstream processes. This requires attention to:
Material handling: Robots or conveyors that present modules with repeatable accuracy
Vision systems: For pre-weld alignment and post-weld inspection
Process monitoring: Real-time sensors feeding data to the plant MES
Fixturing design: Clamping systems that accommodate part variations without adding cycle time
4.2 The Role of Process Development
Battery welding parameters are highly specific to cell chemistry, tab geometry, and material stack-up. A complete process development program should include:
Material characterization: Understanding reflectivity, thermal conductivity, and coating effects
Parameter optimization: Systematic variation of power, speed, pulse shape, and beam wobble
Sample testing: Cross-sectional analysis to verify penetration and HAZ
Pilot line validation: Verifying parameter consistency on a pilot line
Leading equipment suppliers maintain applications labs where customers can send sample materials for process development before committing to production equipment.
4.3 Case Example: Validating Multi-Station Performance
A typical validation sequence for a multi-station battery welding system might include:
| Validation Step | Typical Duration | Success Criteria |
|---|---|---|
| Feasibility study (lab) | 2-4 weeks | Weld samples meet visual and cross-section criteria |
| Process window development | 4-6 weeks | Identify parameters achieving >99.5% acceptable welds |
| Pilot line validation | 4-8 weeks | Demonstrate target cycle time with consistent quality |
| Production ramp support | Ongoing | On-site engineering during initial production |
Timelines and results vary significantly based on project scope and complexity.
Chapter 5: FAQs for U.S. Battery Manufacturers
Q1: Is it wise to invest in new welding equipment during the current U.S. battery market adjustment?
A: Market downturns are precisely the window for process optimization. Currently, some battery plants are using downtime for line upgrades in preparation for the next demand cycle. Meanwhile, factories transitioning to ESS production face equally stringent consistency requirements. Improving yield and reducing scrap costs contribute directly to profitability in any market environment.
Q2: How much can a multi-station system improve line speed?
A: Based on industry benchmarks and typical production scenarios, multi-station configurations can achieve cycle time improvements in the range of 20-30% compared to single-station alternatives. Actual gain depends on module design, weld count, and material handling integration. A process simulation using your specific parameters can provide a more accurate estimate.
Q3: How can we ensure weld data is compatible with our MES?
A: Modern laser welding systems provide standard data interfaces (OPC UA, MTConnect, REST APIs) that can integrate with major MES platforms. The key is to define your data requirements—what parameters to log, at what frequency, and linked to which identifiers—before system specification.
Q4: What welding quality issues can real-time monitoring address?
A: Real-time monitoring primarily addresses penetration depth consistency, heat-affected zone control, and spatter suppression. In critical applications like cap welding, minor deviations can compromise seal integrity. Modern systems can compensate in real-time during the welding process, effectively controlling defect rates.
Q5: We're planning a new line. How early should we engage with a supplier?
A: Ideally, during the initial process design phase, before finalizing module geometry. Welding parameters are highly dependent on joint design, material thickness, and access constraints. Early engagement allows for joint development of weld schedules, fixture concepts, and integration requirements, avoiding costly redesigns later.
Conclusion: Strengthening Process Fundamentals During Industry Transition
The U.S. battery manufacturing industry is navigating a shift from a “construction boom” to an “operations optimization” phase. As market demand recalibrates, the era of competing purely on capacity is giving way to a new focus: process precision and operational efficiency.
Multi-station laser welding systems, when properly engineered and validated, offer a reliable pathway to predictable ramp-ups and consistent production speeds. By distributing thermal load, enabling parallel processing, and integrating real-time quality monitoring, they directly address the fundamental tension between line speed and quality.
Engage with the JOYLASER Applications Engineering Team to discuss your specific requirements.
[Request a Battery Welding Process Feasibility Study]
Submit your cell tab and busbar samples. Our applications engineers will develop and optimize welding parameters for your specific materials, deliver test samples with cross-sectional analysis, and provide a confidential report with cycle time estimates and integration recommendations.
Industry data and trend analysis in this article are compiled from publicly available technical literature, industry reports, and authoritative media coverage. Actual results may vary depending on specific process conditions; process feasibility studies are recommended for validation.
