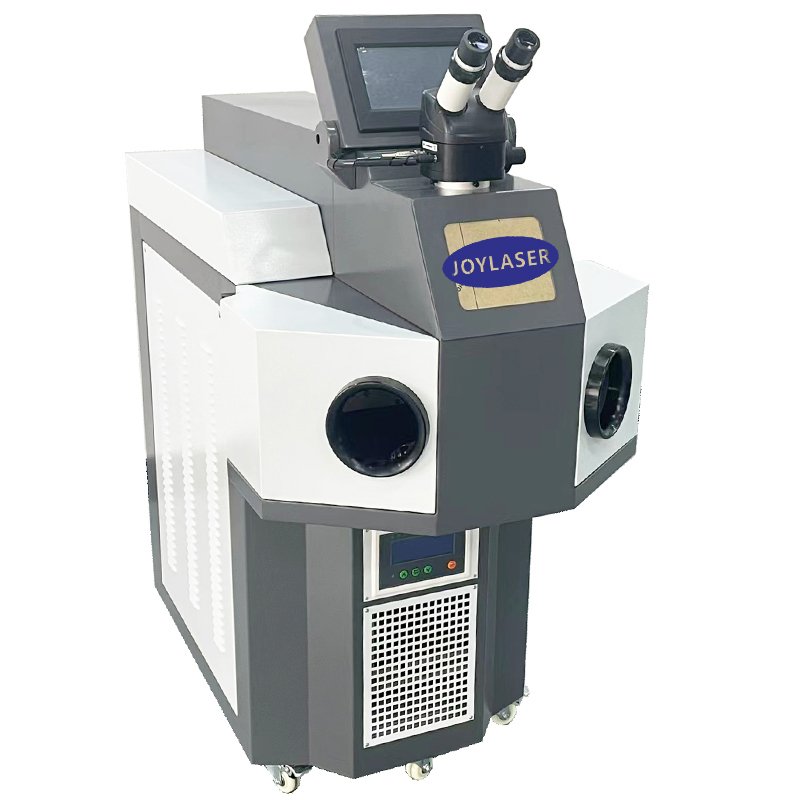

CCD Jewelry Laser Welding Machine
This CCD jewelry laser welding machine features a high-definition camera video planning system, delivering precise hotspot positioning and intelligent operation, ideal for jewelry crafting and repair.
This is popup title
You don't need to waste your time and money anymore.
Description
Joylaser CCD Jewelry Laser Welding Machine Products
The CCD Jewelry Laser Welding Machine is a professional solution designed for precision welding and repair of fine jewelry. Equipped with a high-definition CCD visual system, it provides a clear view and accurate alignment for delicate operations. Utilizing pulsed YAG laser technology, it enables high-quality, low-heat spot welding on gold, silver, platinum, and other precious metals. With support for foot pedal control and touchscreen operation, this machine is ideal for jewelry studios, repair shops, and training centers. It delivers clean, strong welds without damaging the material—making it a perfect choice for high-end jewelry applications.
CCD Jewelry Laser Welding Machine Product Core Advantages
CCD-assisted visual alignment for precise focus
Smart video analysis with automatic heat zone detection
Micro heatbed temperature control for stable output
Sleek, compact design ideal for jewelry environments
Foot pedal operation for hands-free control in tight spaces
CCD Jewelry Laser Welding Machine Application Scenarios
Precision spot welding for jewelry stones and prongs
Remote repair of gold and silver jewelry
Microwelding of rings, chains, pendants, and clasps
Jewelry workshops, gemstone craft studios, and training centers
CCD Jewelry Laser Welding Machine Demo
This video showcases the JOYLASER CCD jewelry laser welding machine’s precision in fine jewelry repair. With a high-resolution CCD system, welding points are magnified for accurate alignment—perfect for rings, earrings, chains, and small components.
Using pulsed laser technology, it delivers smooth, spatter-free welds with minimal heat effect—no polishing needed, preserving the original look and luster. Suitable for gold, silver, platinum, palladium, and stainless steel.
Compact and multilingual, it’s ideal for jewelry repair shops, custom studios, and small-scale production. CCD assistance ensures high accuracy and efficiency for premium jewelry welding.
CCD Jewelry Laser Welding Machine Technical Specifications
| Item | Specification |
|---|---|
| Laser Power | 200W |
| Laser Wavelength | 1064nm |
| Condenser Reflector | Imported ceramic condenser |
| Laser Frequency | 1 – 20Hz |
| Pulse Width | 0.1 – 10ms |
| Spot Size Range | 0.2 – 2mm |
| Aiming & Positioning | Microscope and red light pointer |
| Chiller Power | 1P |
| Cooling Method | Built-in water cooling system |
| Power Supply | 380V±5V 50Hz/40A or 110–220V±5V 50Hz/60A |
CCD Jewelry Laser Welding Machine Customer Cases
A luxury jewelry brand integrated this CCD jewelry laser welding machine into its production line, improving diamond setting quality control by 35%.
A boutique jewelry repair shop uses this machine for same-day ring resizing and platinum micro-welding, reducing turnaround time by 60%.
A jewelry school equipped student stations with CCD laser welders to teach safe and precise gold chain repairs with real-time monitoring.
CCD Jewelry Laser Welding Machine welding welding example
CCD Jewelry Laser Welding Machine Welding Example
Q1: What types of jewelry metals can this machine weld?
A1: It supports gold, silver, platinum, titanium, and other commonly used jewelry metals.
Q2: What advantages does the CCD system have over traditional microscopes?
A2: CCD offers real-time magnified view, enhancing alignment accuracy and reducing operator fatigue.
Q3: Is it suitable for fine repairs such as broken chain links?
A3: Yes, with precise control and small spot size, it’s ideal for welding small parts like chain links and earring posts.
Q4: Does it require regular maintenance?
A4: Minimal maintenance needed; keep optical path clean and replace cooling water regularly.
Q5: Can beginners operate the CCD jewelry laser welding machine?
A5: Yes. The intuitive interface and CCD visual guidance make it easy for beginners to learn.
