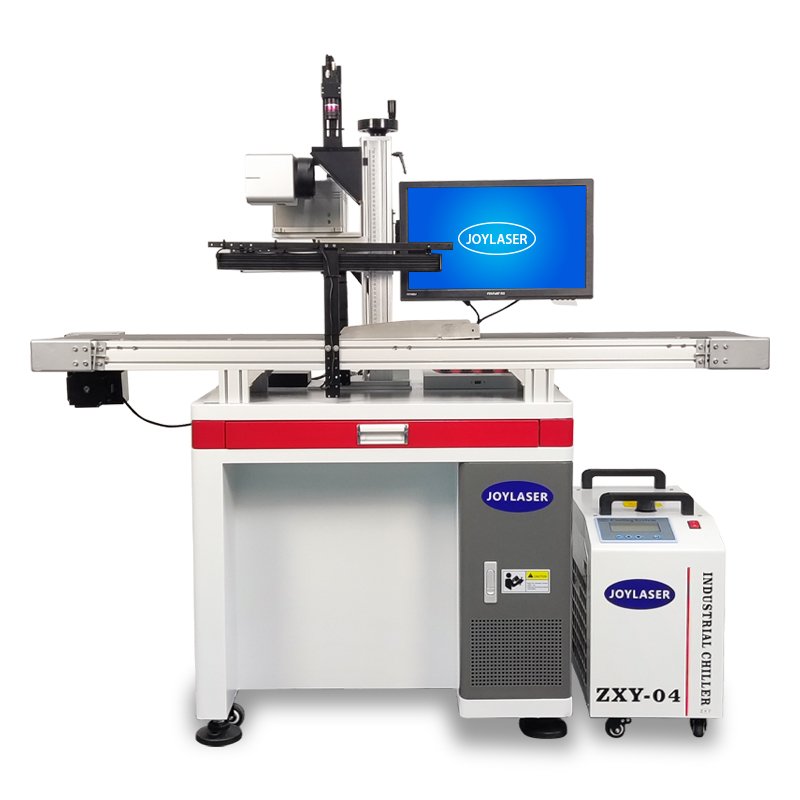

CCD Vision Laser Marking Machine
CCD Visual Positioning Laser Marking Machine offers high-precision marking with real-time camera positioning, ensuring ±0.02mm accuracy. Ideal for electronics, chips, jewelry, and high-value components.Designed with CCD camera alignment technology, this laser marking machine eliminates manual errors, delivers consistent results, and supports complex or micro-scale marking needs.With automatic recognition and correction, the CCD laser marker guarantees stable performance, clean marking quality, and higher efficiency for mass production.Compact, reliable, and intelligent, this machine is widely used in PCB boards, semiconductor parts, medical devices, and other industries that demand precise, repeatable marking.
This is popup title
You don't need to waste your time and money anymore.
Description
CCD Vision Laser Marking Introduction
The CCD Vision Laser Marking & Engraving Machine combines high-precision laser technology with a CCD visual positioning system, enabling automatic recognition and precise positioning of workpieces. It supports marking at any angle and multiple items simultaneously. Intelligent software automatically identifies different shapes and quantities. Suitable for metal, plastic, electronic components, and medical devices. Non-contact processing reduces workpiece damage and is compatible with automated production lines for high-speed, high-precision processing.
CCD Vision Laser Marking Key Advantages
Automatic workpiece recognition reduces manual errors
High-precision marking with ±0.02mm accuracy
Multi-item simultaneous marking for higher efficiency
Non-contact processing protects workpieces
Intelligent software automatically detects angles and shapes
Compatible with automated production lines for batch production
Suitable for metal, plastic, electronics, and medical devices
CCD Vision Laser Marking Technical Parameters
| Parameter | Specification |
|---|---|
| Laser wavelength | 355nm |
| Laser frequency | 20-150Hz |
| Voltage | 110V-220V |
| Positioning accuracy | ±0.02mm |
| Engraving range | 160mm × 160mm (Visual material) |
| Engraving line speed | ≤7000mm/s |
| Minimum line width | 0.03mm |
| Minimum character size | >0.5mm |
| Working mode | Belt line |
| Cooling mode | Water cooling |
| Model features | CCD visual positioning system, automatic recognition of multiple items for batch marking |
CCD Vision Laser Marking Applications
Batch laser marking for PCB boards and electronic components
Serial number and QR code laser marking for metal parts
Medical device laser marking (syringes, surgical instruments, etc.)
Plastic and composite parts laser marking
High-speed batch production on automated lines
CCD Vision Laser Marking Marker Demonstration
The CCD vision laser marking machine combines high-precision laser technology with CCD visual positioning. It enables automatic recognition and precise positioning of workpieces, supporting batch marking at any angle or position. Equipped with intelligent software, it automatically identifies different parts, adjusts marking angles, and allows multiple items to be marked simultaneously. Suitable for metals, plastics, electronic components, and medical devices, its non-contact process reduces damage to workpieces and is ideal for automated production lines and high-precision industrial applications.
CCD Vision Laser Marking Customer Cases
Electronics factory: Batch laser marking on PCB boards, efficiency increased by 50%, accuracy within ±0.02mm
Battery manufacturer: Automatic recognition and laser marking for lithium battery electrodes, enabling high-speed batch processing and reducing labor costs by 30%
Medical device company: Automatic laser marking of QR codes and serial numbers on surgical instruments, improving traceability
Mechanical parts factory: Multi-angle batch laser marking for metal gears and bearings, improving production consistency

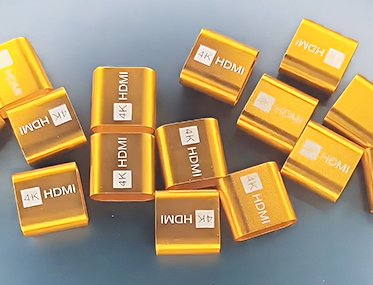

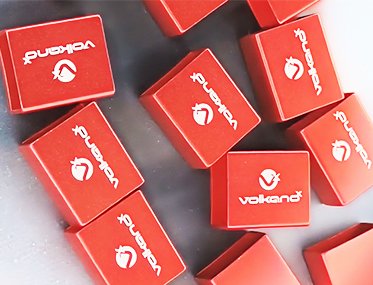

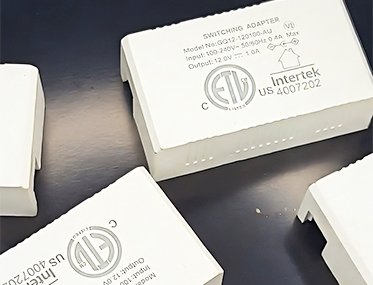

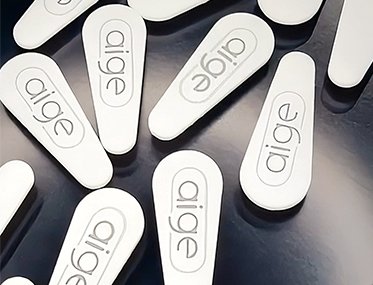

CCD Vision Laser Marking Machine Marking Examples
CCD Vision Laser Marking FAQ
Q1: What is the difference between CCD vision laser marking machine and ordinary laser marking machine?
A1: CCD vision laser marking machine automatically recognizes and positions workpieces of different shapes and angles for batch marking, while ordinary machines require manual positioning.
Q2: What materials can it mark?
A2: Supports metal, plastic, electronic components, and composite materials.
Q3: Can it mark multiple items simultaneously?
A3: Yes, the CCD vision system automatically recognizes and marks multiple items.
Q4: How accurate is the marking?
A4: Positioning accuracy reaches ±0.02mm.
Q5: Is it suitable for automated production lines?
A5: Yes, supports automated lines for high-efficiency batch production.
Q6: How does it avoid workpiece damage?
A6: Non-contact laser processing eliminates mechanical pressure and reduces damage.
Q7: Is the software easy to use?
A7: Supports automatic recognition, angle adjustment, and multi-item batch marking.
Q8: What about after-sales service?
A8: One-year full machine warranty, lifetime free technical consultation, and spare parts supply.
