Description

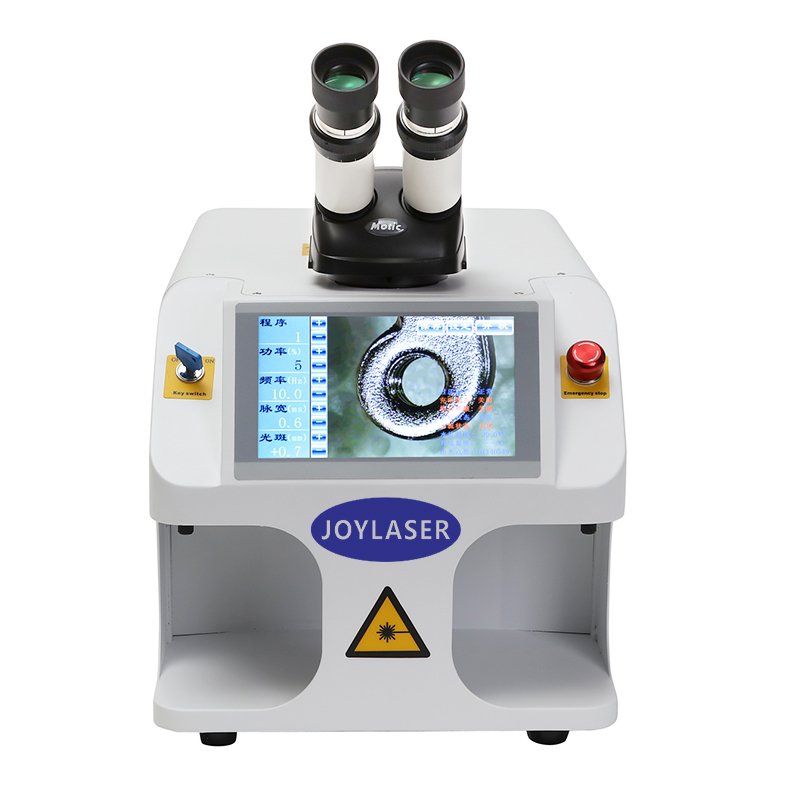

Desktop Jewelry Laser Welding Machine Product Introduction
The Desktop Jewelry Laser Welding Machine is a compact and precision-oriented device specially developed for welding and repairing precious metals such as gold, silver, and platinum. Designed with an integrated structure, it occupies minimal space and features a built-in microscope with crosshair alignment for accurate welding. Laser energy, pulse width, and frequency are fully adjustable, catering to various jewelry materials and techniques. This machine enables continuous operation and delivers strong, neat welds. It is widely used for repairing ring cracks, necklace joints, and earring bases with fine control.
Desktop Jewelry Laser Welding Machine Core Advantages
Compact Design: Integrated structure ideal for small jewelry workshops and retail counters
High-Definition Microscope: Equipped with crosshair positioning for precise welding control
Fully Adjustable Parameters: Laser energy, pulse width, and frequency can be flexibly adjusted
Beautiful and Strong Welds: No post-processing needed, smooth and durable weld joints
User-Friendly Operation: Touchscreen panel and foot pedal for easy control
Supports Continuous Work: Stable performance for high-frequency repair tasks
Energy Efficient and Low Maintenance: Quality laser source and water cooling system ensure long service life and low maintenance
Desktop Jewelry Laser Welding Machine Application Scenarios
Welding and repair of gold and silver jewelry
Claw settings on diamond rings
Necklace link restoration
Micro welding on earrings and bracelets
Jewelry customization studios and retail stores
Desktop Jewelry Laser Welding Machine Demo
The JOYLASER jewelry laser welding machine is tailored for welding and repairing fine jewelry made from gold, silver, platinum, and palladium. Using pulsed laser technology, it ensures minimal heat input with no discoloration, deformation, or spatter.
Ideal for fixing ring cracks, chain links, earring posts, and prong settings, this machine delivers precise, clean welds that preserve the original look and value of luxury pieces.
Equipped with a microscope and crosshair alignment, it offers intuitive operation. Its compact design makes it perfect for jewelry repair shops and custom studios—an essential tool for high-end precious metal work.
Desktop Jewelry Laser Welding Machine Technical Specifications
Parameters | Specification |
---|---|
Laser Type | Pulsed YAG Laser |
Max Laser Power | 150W |
Pulse Width | 0.1–10ms |
Pulse Frequency | 1–50Hz |
Laser Wavelength | 1064nm |
Spot Diameter | 0.2–2.0mm Adjustable |
Observation System | HD Microscope + Crosshair Light |
Control Method | Touchscreen + Foot Pedal |
Cooling Method | Water Cooling |
Input Power Supply | AC220V±10% / 50Hz |
Machine Dimensions | 600×400×400mm |
Net Weight | 40kg |
Desktop Jewelry Laser Welding Machine Welding Customer Cases
Florence, Italy – High-End Custom Jewelry Studio
A renowned artisan jewelry studio in Florence uses this desktop jewelry laser welder for crafting and repairing 18K gold rings. The machine improved welding precision by 30% and reduced repair time by 50%, allowing the studio to handle more customized orders with greater efficiency.
Los Angeles, USA – Jewelry Repair Shop
A busy retail jewelry repair shop in Los Angeles deployed this model for fast repairs of broken chains and ring resizing. With its compact design and user-friendly interface, the shop can now complete over 20 repair orders per day, significantly enhancing customer satisfaction and turnaround time.
Osaka, Japan – Jewelry Training Academy
A well-known jewelry design and repair training institute in Osaka adopted this laser welder as part of their practical training equipment. Thanks to its safety features and precise visual control, it became one of the preferred machines for students to learn fine welding techniques on precious metals.
Desktop Jewelry Laser Welding Machine Welding Example




Desktop Jewelry Laser Welding Machine Welding FAQ
Q1: What materials can this jewelry laser welder work with?
A1: This machine is suitable for welding precious metals such as gold, silver, platinum, and palladium, as well as stainless steel and titanium commonly used in fine jewelry.
Q2: Is this desktop welder suitable for small workshops or retail stores?
A2: Yes, its compact benchtop design makes it ideal for limited spaces like jewelry studios, repair counters, and training classrooms.
Q3: Can this machine weld very thin or delicate jewelry components?
A3: Absolutely. With adjustable laser parameters and a precise microscope system, this welder is perfect for micro-welding delicate chains, prongs, bezels, and clasps.
Q4: Does this machine require professional training to operate?
A4: No special welding background is needed. The intuitive touchscreen and foot pedal control make it easy to learn and use, even for beginners.
Q5: What cooling method does this laser welder use?
A5: It uses an efficient water cooling system to maintain stable performance during continuous operation and extend the machine’s service life.
Q6: How is the welding accuracy ensured?
A6: The machine is equipped with a high-resolution microscope and crosshair alignment, allowing the operator to weld with pinpoint precision.
Q7: Is this machine capable of repairing broken gold chains or resizing rings?
A7: Yes, this desktop laser welder is widely used for chain repair, ring resizing, stone setting repair, and other precision jewelry fixes.
Q8: What power supply does this unit require?
A8: It operates on a standard AC220V±10% / 50Hz power supply, making it compatible with most workshop setups.
Q9: Is the welding process clean and safe?
A9: Yes, the laser welding process produces minimal heat, no smoke, and no need for flux or solder, making it a clean and safe option for fine jewelry work.
Q10: Does the machine come with a warranty and support?
Q10: Does the machine come with a warranty and support?
