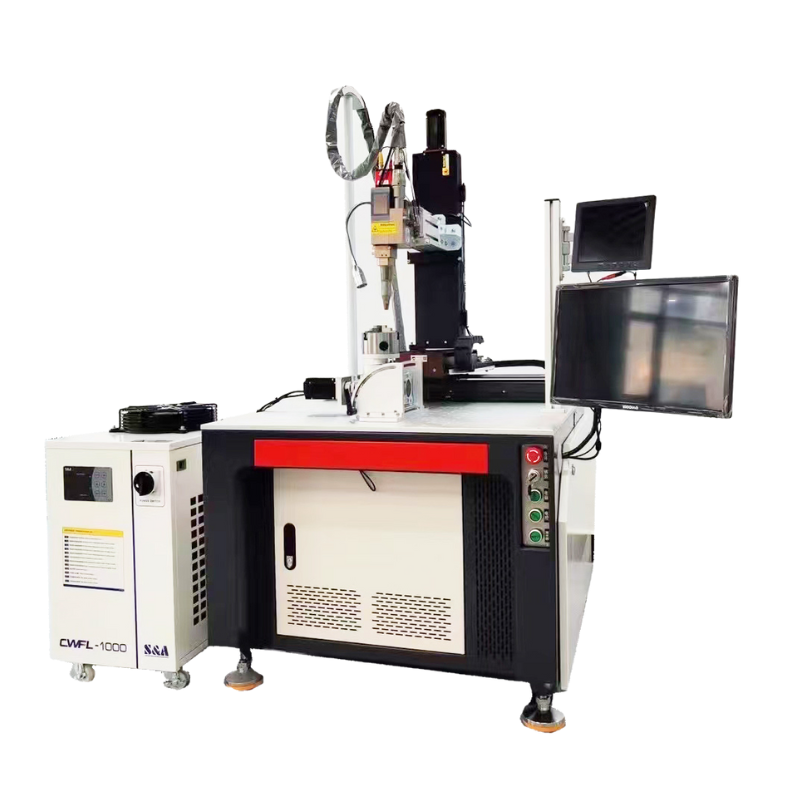

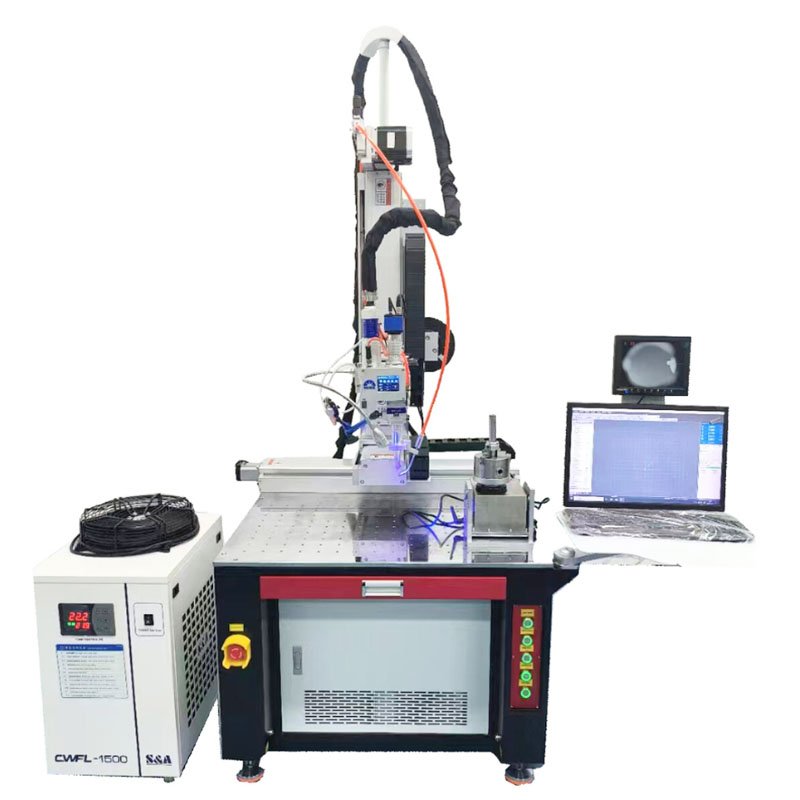

Platform Fiber Laser Welding Machine
The platform fiber laser welding machine features a high-power fiber laser and precision motion system, designed for accurate metal welding. Ideal for molds, electronics, and precision hardware industries with automation compatibility.
This is popup title
You don't need to waste your time and money anymore.
Description
Platform Fiber Laser Welding Machine Product Introduction
The platform fiber laser welding machine features a high-power laser source and a dedicated control system that supports automatic programming of complex welding paths, including continuous dots, straight lines, curves, and arcs.
It delivers high-speed welding with deep penetration, minimal deformation, and clean, smooth weld seams. With low material consumption and easy operation, it is ideal for precision welding applications.
Equipped with an electric translation platform and custom fixtures, it ensures repeatable positioning accuracy and high processing efficiency—making it widely used in the manufacturing of hardware, electronics, kitchenware, and medical devices.
Core Advantages of Fiber Laser Platform Welding Machine
1.Sub-Micron Precision for High-Accuracy Applications
Integrated with a precision motion stage and servo control system, it enables ±0.01mm welding accuracy—ideal for micro-scale components and intricate patterns.
2.Stable Laser Output for Consistent Weld Quality
Equipped with a premium fiber laser source, it provides reliable beam stability and excellent focus quality, ensuring uniform weld seams even during extended operation.
3.Excellent Material and Structure Compatibility
Capable of welding a wide range of metals including copper, aluminum, stainless steel, carbon steel, and titanium. Perfect for thin sheets, dissimilar metals, and complex part geometries.
4.Low Thermal Distortion with Minimal Heat-Affected Zone
With tightly focused energy and controlled heat input, it minimizes material warping—especially beneficial for precision parts with strict dimensional requirements.
5.Modular Open Platform for Easy System Integration
The modular platform design allows for seamless integration with CCD vision systems, robotic arms, auto-loading units, and other automation modules for flexible production line setup.
6.User-Friendly Interface Supporting Multi-Process Tasks
Features a graphical HMI interface combined with PLC control. Operators can quickly adjust welding parameters, import complex welding paths, and switch between tasks with ease.
在此添加您的标题文本
这是测试文本，单击 “编辑” 按钮更改此文本。
Platform Fiber Laser Welding Machine Technical Parameters
| Parameter | Value |
|---|---|
| Laser Type | Continuous Fiber Laser |
| Laser Power | 1000W / 1500W / 2000W (Optional) |
| Spot Size Range | 0.2–3.0 mm |
| Fiber Length | 5 M |
| Motion Platform | Electric Translation Table |
| Welding Path | Dot, Line, Circle, Curve, Arc, etc. |
| Aiming and Fixing | Camera Vision System |
| Cooling Method | Water Cooling |
| Chiller Capacity | 1.5P |
| Rated Power | 3.5 kW |
| Operating Voltage | 110–220V ±5V, 50Hz / 40A |
| Applicable Materials | Stainless Steel, Carbon Steel, Aluminum, Copper, Titanium, Alloys |
Application Scenarios of Fiber Laser Platform Welding Machine
3C Electronics Precision Welding: Ideal for micro-welding of mobile phone frames, battery parts, and small electronic hardware, delivering strong joints and uniform finishes.
Medical Device Manufacturing: Used for non-contact, ultra-clean welding of stainless surgical tools and diagnostic components.
Precision Metal Component Assembly: Widely applied in instruments, sensors, and structural connectors where fine accuracy is required.
Telecommunication Component Welding: Suitable for welding enclosures, filters, and metal connectors, ensuring signal integrity and mechanical strength.
Lab & R&D Prototyping: Supports universities and research institutions in welding custom parts and experimental assemblies with high accuracy and flexibility.

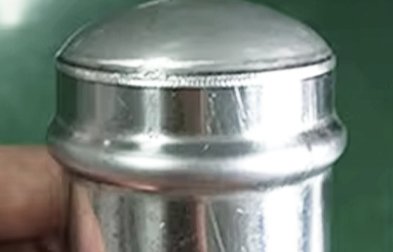

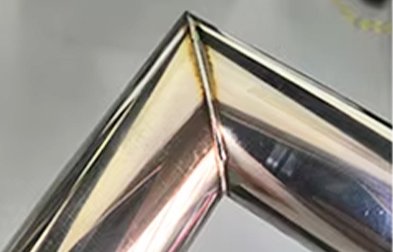

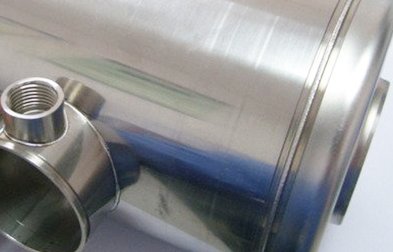

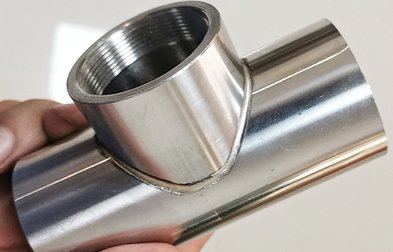

Platform Fiber Laser Welding Machine Welding Example
Platform Fiber Laser Welding Machine FAQ
1. Does the fiber laser platform welding machine require welding wire?
In most cases, no (depending on product requirements). This significantly reduces consumable costs and simplifies the operation.
2. Does the fiber laser platform welding machine support multiple welding paths?
Yes, it supports spot welding, straight lines, circles, arcs, and curves. Custom paths can be programmed via software.
3. What metal materials can be welded with the fiber laser platform welding machine?
It is suitable for stainless steel, carbon steel, aluminum, copper, titanium, nickel alloys, and other metals and alloys.
4. Is the operation complicated? Can beginners learn it quickly?
The system is user-friendly and intuitive, supporting graphic programming and visual alignment, making it easy for beginners to learn and use quickly.
5. How accurate is the platform? Is it suitable for high-precision applications?
It features a high-precision electric translation platform with repeat positioning accuracy up to ±0.02 mm, making it ideal for high-precision processing.
