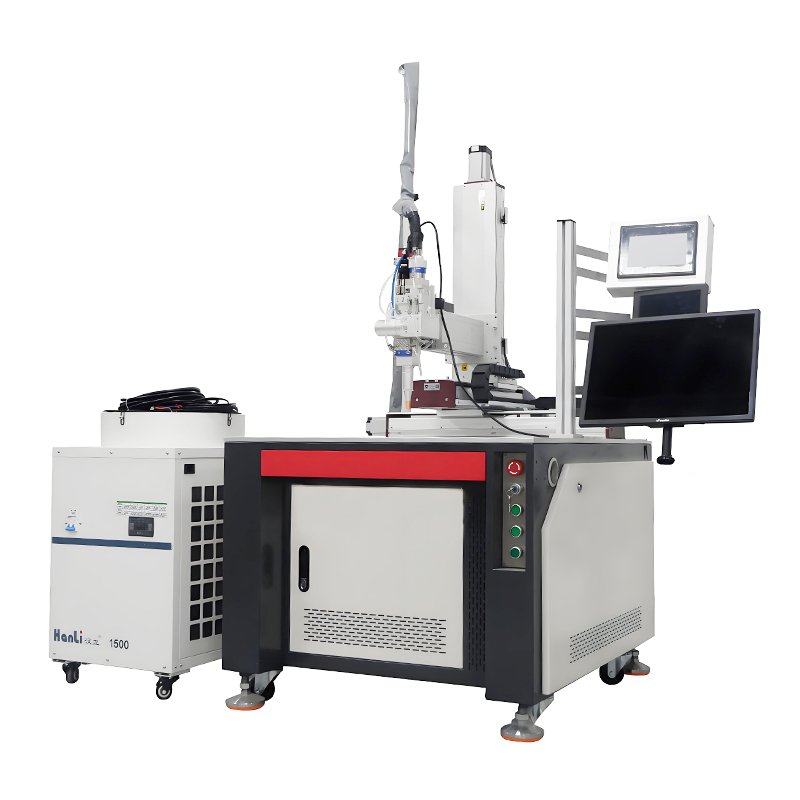

QCW platform fiber laser welding machine
Designed for micro-welding and high-reflective materials, the QCW platform fiber laser welding machine delivers high peak power with low heat input and fine weld quality.
This is popup title
You don't need to waste your time and money anymore.
Description
QCW Platform Fiber Laser Welding Machine Product Introduction
The QCW fiber laser platform welding machine is a versatile and high-precision laser welding system designed for micro-welding applications. It combines the advantages of high peak pulse energy with stable continuous wave output, making it ideal for welding high-reflective materials such as gold, silver, copper, and aluminum. With a modular platform design and high-precision XYZ motion system, this machine supports visual alignment and full automation integration. It is widely used in fields such as medical device manufacturing, microelectronics, optical communication, sensors, and battery welding. The welding process ensures a minimal heat-affected zone and produces clean, smooth seams without the need for post-processing. Whether for prototyping or mass production, this system delivers stable, high-quality welding results.
QCW Platform Fiber Laser Welding Machine core advantages
High peak pulse energy for reflective materials like copper, gold, and aluminum
Automated platform with multi-axis precision control
Switchable pulse/continuous modes
Fine welding seams with no post-processing required
Supports visual positioning and motion control integration
QCW Platform Fiber Laser Welding Machine Application Scene
Medical devices (e.g., stainless steel tubes, surgical tools)
Battery tab welding, metal sensor sealing
Precision metal parts and micro-electronic packaging
Optical communication and laser module welding
Precision welding for jewelry and eyeglass frames
QCW Platform Fiber Laser Welding Machine Demo
This video showcases the JOYLASER QCW Platform Fiber Laser Welding Machine’s efficient welding on various metals. Utilizing QCW laser tech, it delivers high peak pulses with precise heat control, producing smooth welds with minimal heat impact. The multi-axis platform enables accurate complex path welding, compatible with stainless steel, aluminum, copper, and alloys. Widely used in automotive, electronics, medical, and precision hardware industries, it supports CAD path import and real-time monitoring for stable, high-efficiency welding.
QCW Platform Fiber Laser Welding Machine Technical Parameters
| Parameter | Value |
|---|---|
| Laser Type | QCW Fiber Laser |
| Output Power | 75W / 150W / 300W |
| Peak Power | Up to 1500W |
| Pulse Width Range | 0.2–50ms |
| Pulse Frequency | 1–200Hz |
| Welding Accuracy | ±0.01mm |
| Motion System | XYZ 3-axis precision platform |
| Control System | Industrial PC + Touchscreen |
| Cooling System | Water cooling |
| Positioning Method | Optional CCD vision alignment |
| Power Supply | AC 220V / 50Hz |
QCW Platform Fiber Laser Welding Machine Customer Cases
Chinese Medical Device Manufacturer:
Used the QCW fiber laser welding machine to weld 0.3mm stainless steel needles with clean, splash-free seams suitable for sterile production.
German Sensor Company:
Deployed the system for sensor package welding, achieving enhanced airtightness and consistency, with a 25% boost in efficiency.

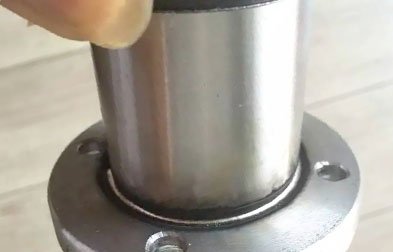

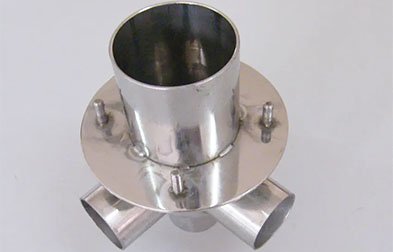

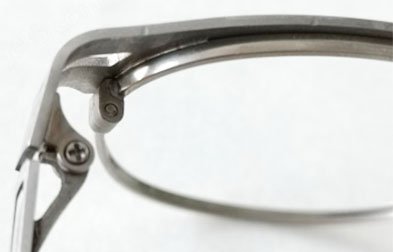

QCW Platform Fiber Laser Welding Machine Welding Example
QCW Platform Fiber Laser Welding Machine FAQ
Q1: What materials can the QCW fiber laser welding machine weld?
A1: The QCW platform fiber laser welding machine e is suitable for various metals such as stainless steel, aluminum, copper, nickel, titanium, and their alloys, especially high-reflective materials.
Q2: Can the QCW platform fiber laser welding machine be integrated into an automated system?
A2: Yes, the QCW platform fiber laser welding machine supports integration with multi-axis motion platforms, industrial robots, and CCD vision systems, making it ideal for smart manufacturing and automated production lines.
Q3: Can the QCW platform fiber laser welding machine switch between pulse and continuous welding modes?
A3: Yes, the QCW platform fiber laser welding machine features dual-mode capability, allowing users to switch between pulse and continuous modes according to material and process requirements.
Q4: Does the QCW platform fiber laser welding machine require an external cooling system?
A4: Yes, to ensure stable laser operation, the QCW platform fiber laser welding machine is equipped with an efficient water-cooling system to prevent performance degradation due to overheating.
Q5: Is the QCW platform fiber laser welding machine suitable for small components or precision welding?
A5: Absolutely. The QCW platform fiber laser welding machine offers precise motion control and energy delivery, making it ideal for micro-welding applications in medical devices and electronic components.
