Handheld Laser Welding for Small Shops: Cut Costs, Save Time, and Boost Your ROI
If you run a small fabrication shop — 3 to 10 people handling all sorts of different parts — chances are, you‘ve seen a few videos online or had a customer ask, “Can you laser weld this?”
Or maybe you’re just tired of grinding TIG welds.
We get it.
You probably have questions:
Is it really worth the investment?
How fast will it pay for itself?
Will my crew actually use it?
This guide gives straight answers — no hype, no fluff. Just what a small shop owner needs to know before getting a handheld laser welder.
First, What Kind of Shop Is This For?
This guide is perfect for small fabrication shops that:
Weld stainless steel, mild steel, or aluminum — mostly under 1/4 inch thick (6 mm)
Do a mix of repair work, custom fabrication, and small production runs
Have 1–3 welders on staff
Currently rely on TIG or MIG for most jobs
If this sounds like your shop, keep reading.
Before Laser Welding – Typical Pain Points in Small Shops
| Pain point | How it costs you |
|---|---|
| Slow TIG welding | 10–20 inches of weld per minute on thin material* |
| Grinding time | 30–50% of weld time spent on finishing |
| Heat distortion | Rework, scrapped parts, unhappy customers |
| Welder shortage | Hard to find skilled TIG welders; high turnover |
| Inconsistent quality | Rework costs, delayed shipments |
*Typical ranges for thin stainless steel (1/8 inch / 3mm). Actual speed depends on material, joint design, and operator skill.*
Example: A 1/8-inch stainless steel bracket with 12 inches of weld.
| Method | Welding time | Grinding time | Total time |
|---|---|---|---|
| TIG | 4 minutes | 3 minutes | 7 minutes |
| Handheld laser | 1.5 minutes | 0.5 minutes | 2 minutes |
This example is for illustration only. Actual welding and grinding times depend on part geometry, material, and operator experience.
💡 Bottom line: That‘s a 70% reduction in labor time per part (based on this example). Over a day of mixed work, the savings add up fast.
What a Handheld Laser Welder Can Do for Your Shop
| Area | Before (TIG/MIG) | After (Handheld Laser) |
|---|---|---|
| Welding speed | 10–20 in/min* | 30–60 in/min* |
| Heat distortion | Common on thin material | Minimal |
| Post-weld finishing | Grinding required on most welds | Little to none |
| Learning curve | Months to become proficient | Days to get good results |
| Weld consistency | Varies by operator | Consistent across operators |
Typical ranges for thin stainless steel. Actual speed varies with material, joint design, and operator skill.

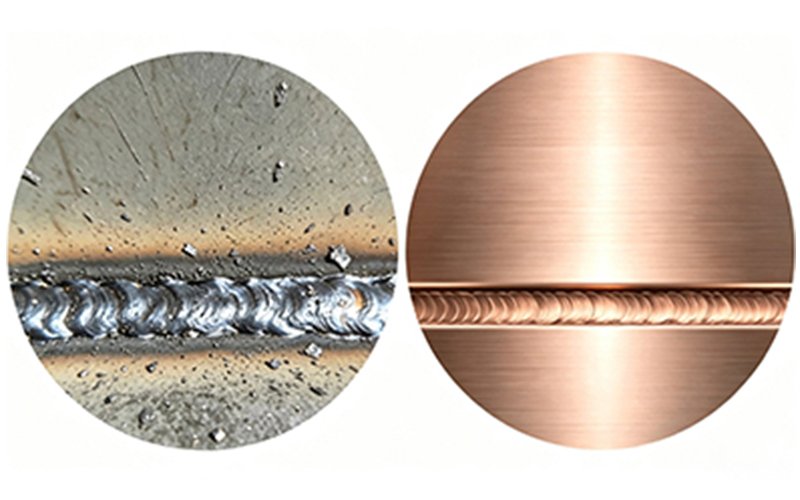

The biggest difference you‘ll notice immediately: less grinding. That’s where small shops save the most time and money.

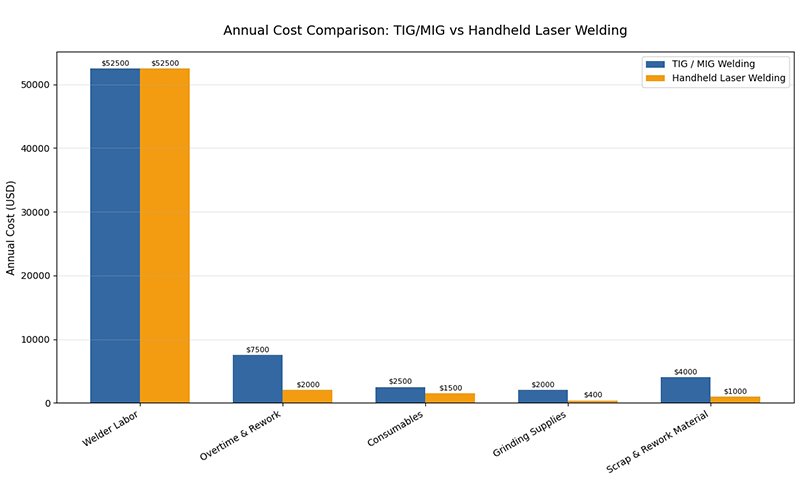

Estimated Cost Breakdown for a Small Shop (Annual)
*The following estimates are based on industry averages for a typical small fabrication shop (3-10 employees). Your actual costs will vary depending on location, labor rates, and work mix.*
| Cost category | With TIG/MIG | With Handheld Laser |
|---|---|---|
| Welder labor (1 full-time welder) | 45,000–60,000 | 45,000–60,000 |
| Overtime / rework labor | 5,000–10,000 | 1,000–3,000 |
| Consumables (tungsten, gas, filler) | 2,000–3,000 | 1,000–2,000 |
| Grinding supplies (discs, belts) | 1,500–2,500 | 300–500 |
| Scrap / rework materials | 3,000–5,000 | 500–1,500 |
| Total annual cost | 56,500–80,500 | 47,800–66,500 |
Estimated annual savings: 8,000–14,000
How Long Until It Pays for Itself (ROI)?
A good handheld laser welding machine costs between 6,000and15,000, depending on power and features.
Using the savings estimate above (8,000–14,000 per year):
| Machine cost | Annual savings (mid-range example) | Payback period |
|---|---|---|
| $6,000 | $10,000 | ~7 months |
| $10,000 | $10,000 | ~12 months |
| $15,000 | $10,000 | ~18 months |
These payback periods are simplified examples. Actual payback depends on your specific usage volume, labor rates, and the types of work you do. Higher-volume shops typically pay off faster.
Questions Small Shop Owners Ask Before Buying
Q1: Will my current crew be able to learn it?
A1: Yes. Most operators become productive within 1–2 days — much faster than TIG, which takes months.
Q2: Can it handle different materials without a lot of adjustment?
A2: Yes. You can save parameter presets for different materials and thicknesses. Switching takes seconds.
Q3: What about maintenance?
A3: Very low. Just keep the lens clean and check cooling water if water-cooled. No electrodes to dress, no tungsten to sharpen.
Q4: Do I need a special power hookup?
A4: Most 1000–1500W handheld units run on standard 220V single-phase power. Check specs.
Q5: How do I know if it‘ll work for my shop?
A5: Run a sample test with your own parts. Most suppliers (including JOYLASER) offer free testing.
How to Get Real Numbers for Your Own Shop
Every shop is different. Here‘s a simple way to estimate your potential savings:
Track your weekly welding hours for one week (include setup, welding, and grinding).
Estimate time savings — most shops save 30–50% with handheld laser.
Multiply by your shop’s hourly labor rate (include wages, benefits, overhead).
Example:
| Factor | Example number |
|---|---|
| Weekly welding hours | 40 hours |
| Time saved (assume 40%) | 16 hours/week |
| Hourly labor rate (fully burdened) | $35/hour |
| Weekly savings | $560 |
| Annual savings (×50 weeks) | $28,000 |
This is an illustration. Use your own numbers for a meaningful estimate. Your actual savings depend on your specific work mix, operator skill, and local labor rates.
Want a custom estimate? Contact JOYLASER with your typical weekly welding hours and hourly rate. We‘ll help you calculate potential ROI for your shop.
Ready to Test Laser Welding in Your Own Shop?
You don’t have to guess.
JOYLASER offers free sample testing for small fabrication shops. Send us your toughest parts — we‘ll weld them and send back samples with recommended settings.
✅ No obligation
✅ See real results on your own parts
✅ Get recommended settings for your shop
👉 [Request Free Sample Test for Your Shop]
Disclaimer: All cost estimates, time savings, and payback periods are based on industry averages and representative examples. Actual results will vary based on your specific work mix, operator skill, local labor rates, and production conditions. Always test with your own parts before purchasing.
